Monitoring a tabular data model

This tutorial explains how to monitor a tabular use case with NannyML

Hotel booking prediction model

The dataset comes from two hotels in Portugal and has 30 features describing the booking entry. To learn more about this data, check out the hotel booking demand dataset. After simple preprocessing, we trained the model to predict whether the booking would be canceled or not, with the final result of 0.87 ROC AUC on a test set.

To monitor the model in production, we created reference and analysis sets. NannyML uses the reference set to establish a baseline for model performance and shift detection. The test set is an ideal candidate to serve as a reference. The analysis set is the production data - NannyML checks if the model maintains performance or if there's a concept or covariate shift.

Let's add our model:

NannyML Cloud UI

1. Click on the Add Model button in the navigation bar.

2. Complete a new model setup configuration.

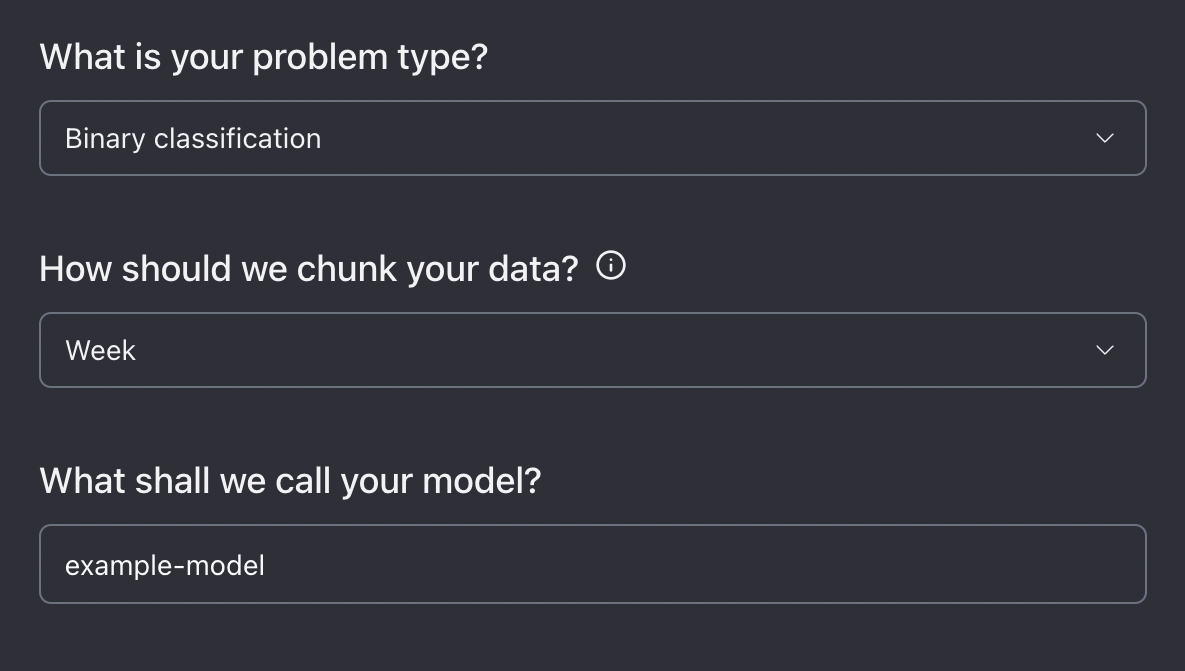

New model configuration setup.

3. Upload reference and analysis datasets using these links:

   1. Reference dataset link- https://raw.githubusercontent.com/NannyML/sample_datasets/main/hotel_booking_dataset/hotel_booking_reference_march.csv

   2. Analysis dataset link - https://raw.githubusercontent.com/NannyML/sample_datasets/main/hotel_booking_dataset/hotel_booking_analysis_march.csv

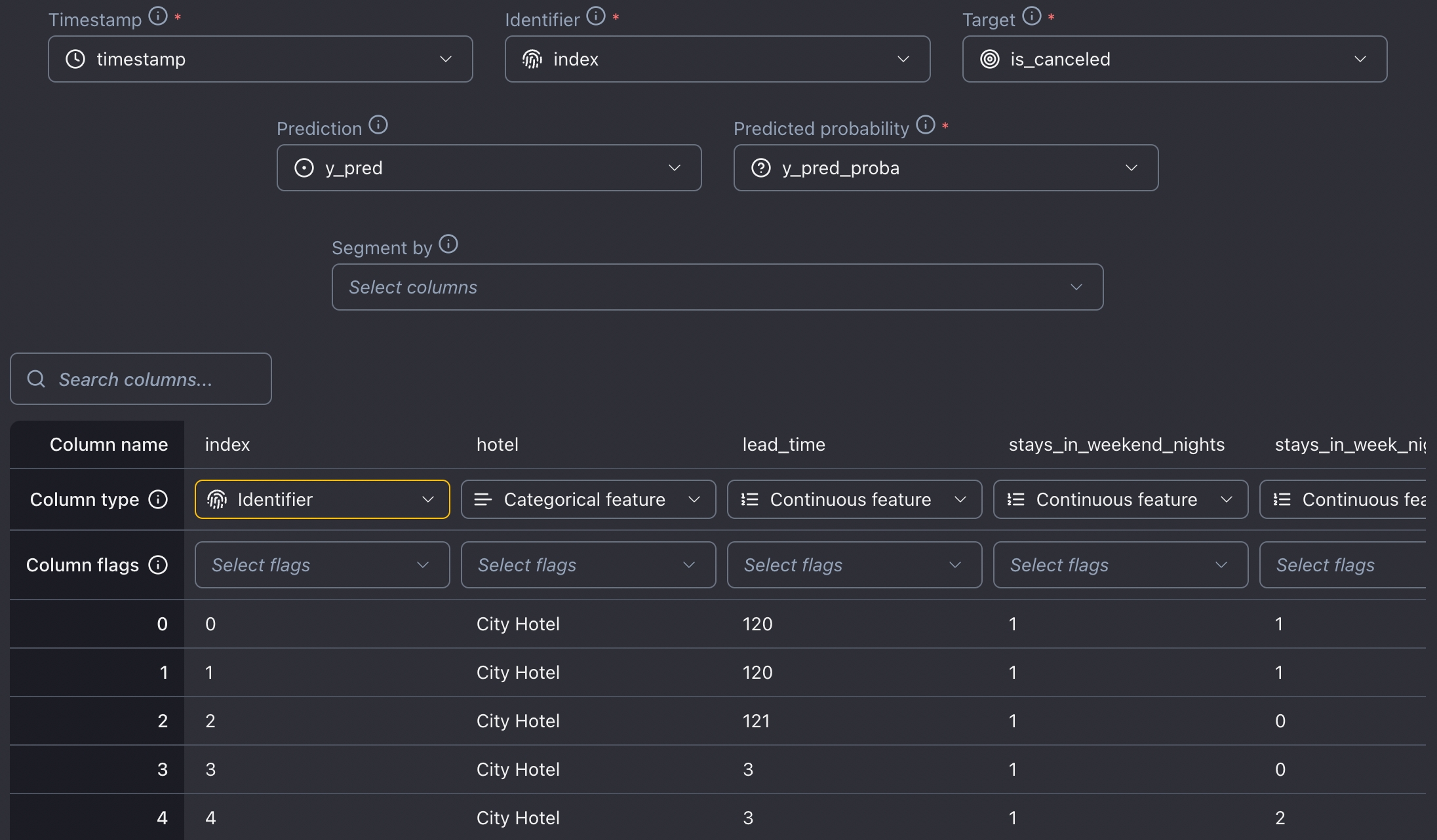

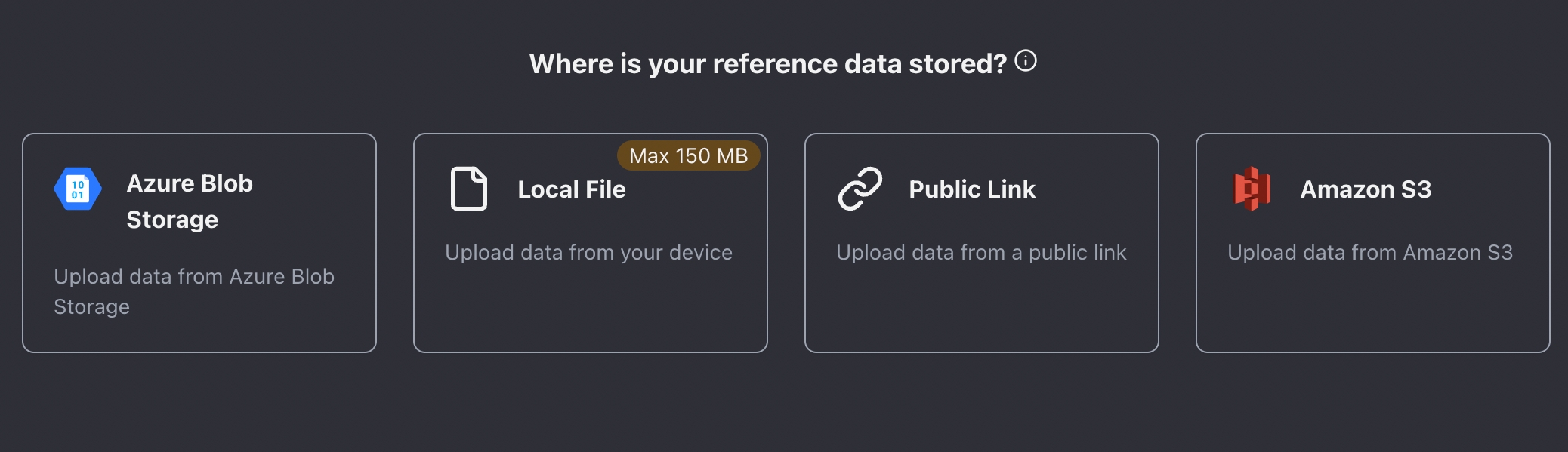

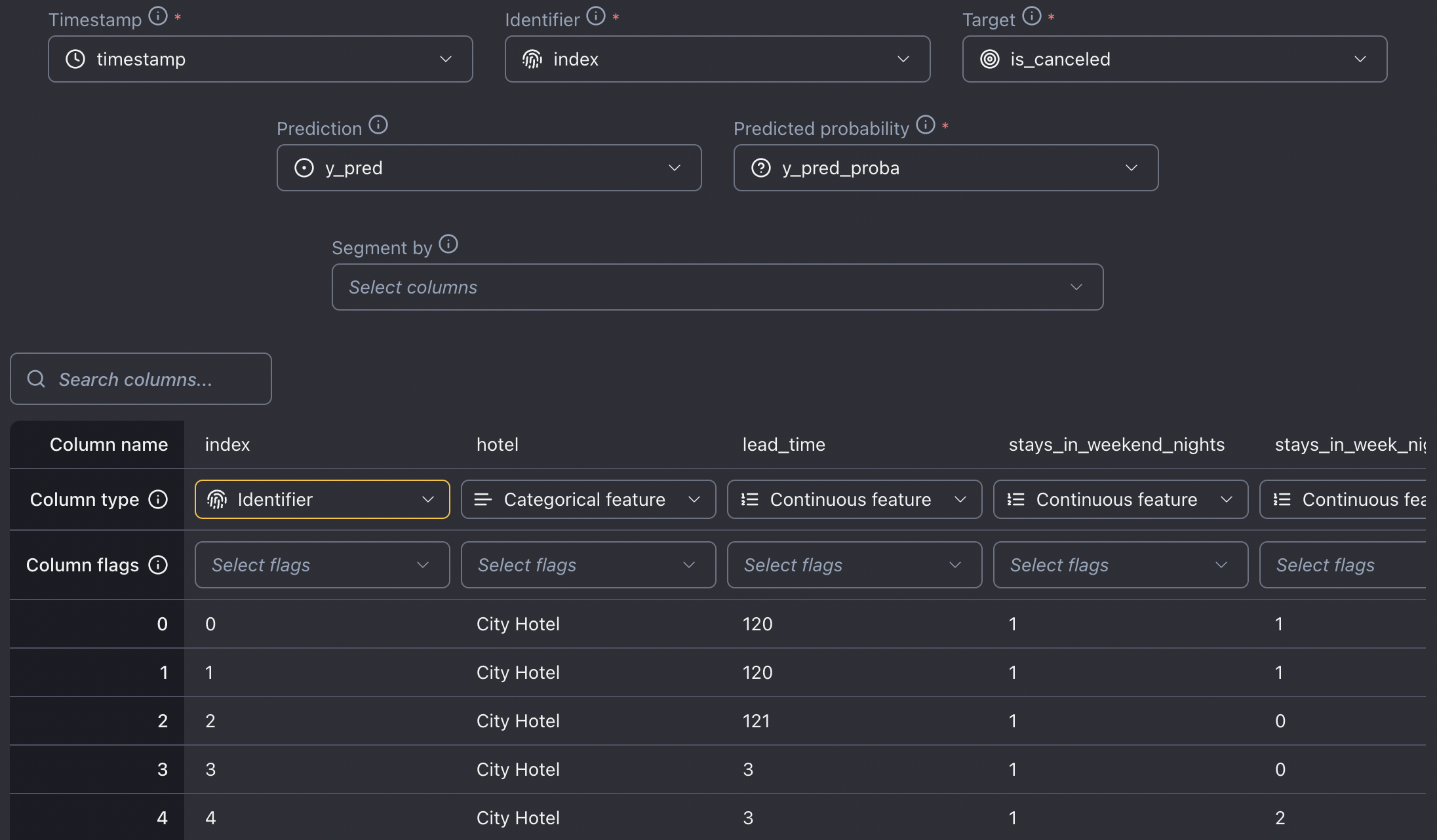

   Reference dataset setup.

4. The uploaded reference data contains the following:

   1. Target - ground truth/labels. In this example, the target is whether a booking is canceled or not. Notice that the target is not available in the analysis set. In this way, we simulate a real-world scenario where the ground truth is only available after some time.

   2. Timestamp - the information when the booking was made. The reference data spans from May to September 2016, while the analysis data covers October 2016 to August 2017.

   3. Predictions - the predicted class. Whether the booking will get canceled or not

   4. Predicted probability - the model scores outputted by the model.

   5. Model inputs - 27 features about hotel booking, including booking like customer's country of origin, age, children, etc.

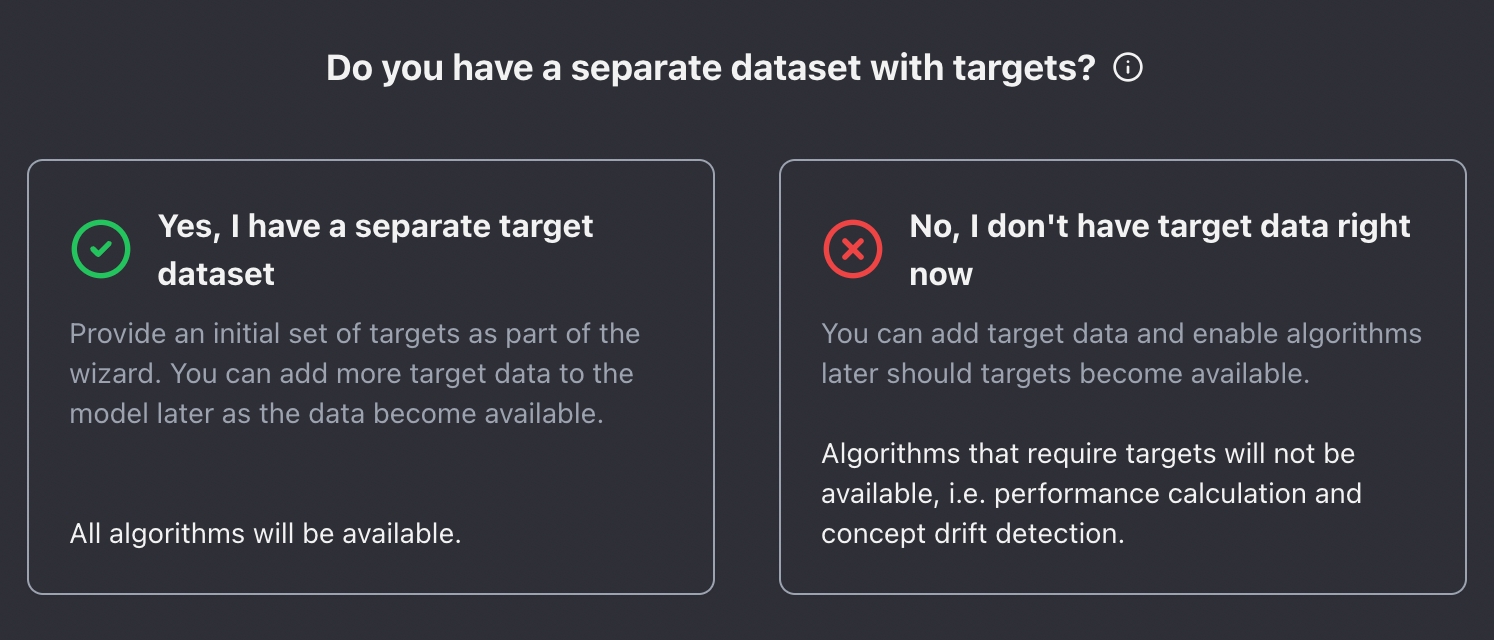

5. Continue without defining the target data and Start Monitoring

NannyML Cloud SDK

To get started, simply follow the initial steps outlined in the SDK documentation. This will guide you through installing the SDK library and obtaining the NannyML Cloud URL and API Token.

After successful installation, create a Python script, import the SDK and Pandas library, and add the credentials.

For demonstration purposes, we recommend using a Jupyter or Colab notebook to upload data with the SDK instead of a Python script.

import pandas as pd
import nannyml_cloud_sdk as nml_sdk

nml_sdk.url = "your instance URL goes here eg; https://beta.app.nannyml.com"
nml_sdk.api_token = r"api token goes here"

Now, we will load reference and analysis data.

reference_data = pd.read_csv("https://raw.githubusercontent.com/NannyML/sample_datasets/main/hotel_booking_dataset/hotel_booking_reference.csv")
analysis_data = pd.read_csv("https://raw.githubusercontent.com/NannyML/sample_datasets/main/hotel_booking_dataset/hotel_booking_analysis_march.csv")

We can now use the Schema class together with the from_df() method to configure the schema of the model.

schema = nml_sdk.Schema.from_df(
    'BINARY_CLASSIFICATION',
    reference_data,
    target_column_name='is_canceled',
    identifier_column_name = 'Index',
)

Then, we create a new model by using the Model.create() method. Where we can set chunk period to monthly, and accuracy as the main monitoring performance metric.

model = nml_sdk.Model.create(
    name='Hotel Booking SDK upload',
    schema=schema,
    chunk_period='MONTHLY',
    reference_data=reference_data,
    analysis_data=analysis_data,
    target_data=pd.DataFrame(columns=["Index", "is_canceled"]),
    main_performance_metric='ACCURACY',
)

And voila, the model should now be available in your Model Overview dashboard! 🚀

Estimated performance

ML models are deployed to production once their performance has been validated and tested. This usually takes place in the model development phase. The main goal of ML model monitoring is to continuously verify whether the model maintains its anticipated performance (which is not the case most of the time).

Monitoring performance is relatively straightforward when targets are available, but in many use cases like demand forecasting or insurance pricing, the labels are delayed, costly, or impossible to get. In such scenarios, estimating performance is the only way to verify if the model is still working properly.

Let's see the estimated performance of our model on the summary page. The model summary shows signs of performance degradation in the last chunks of performance estimation.

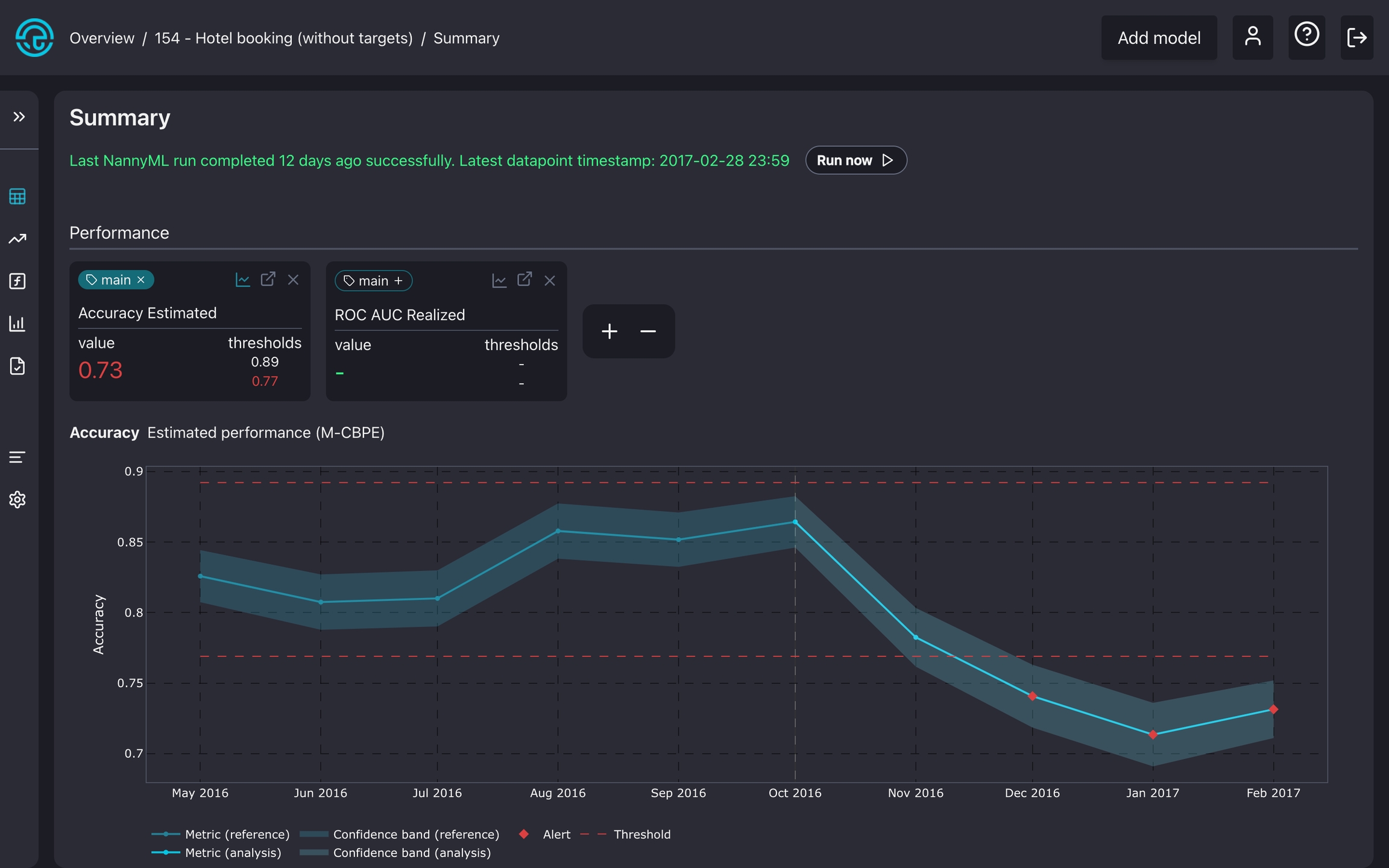

The accuracy plot in the model Summary page.

Also, the PCA reconstruction error from the multivariate drift detection method seems to be higher than the given thresholds.

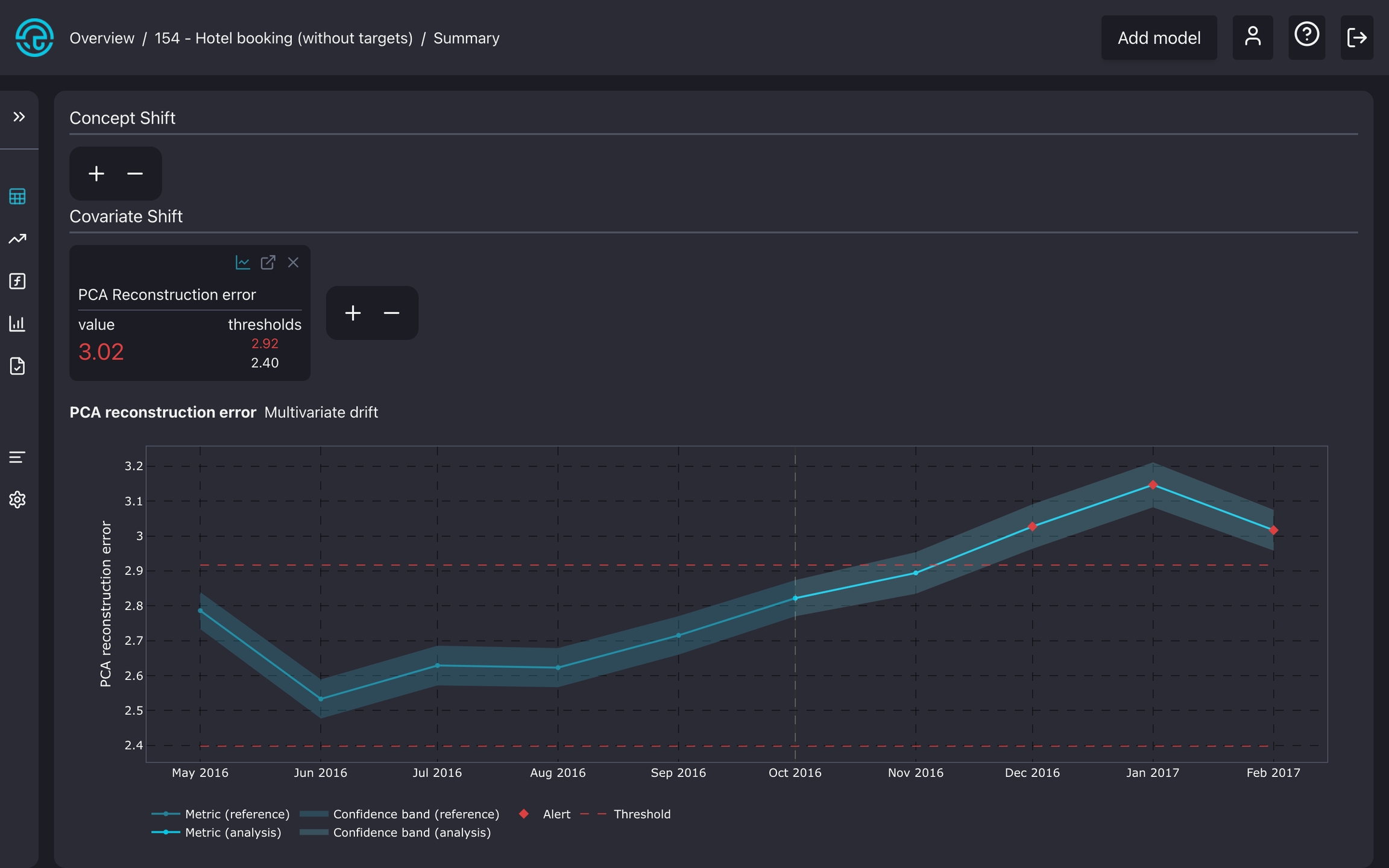

The PCA reconstruction error plot in the model Summary page.

Notice that concept shift detection is not available since it requires ground truth data in the analysis set.

Multivariate drift detection is the first step in covariate shift detection, focusing on detecting any changes in the data structure over time. The accuracy and reconstruction error plot shows alerts in the last three months, which tells us that covariate shift is possibly responsible for it. But we still don't know what real-world changes are causing this. To figure that out, we need to analyze the drifting features more deeply.

Why did the performance drop?

Once we’ve identified a performance issue, we need to troubleshoot it. The first step is to look into potential distribution shifts for all the features in the covariate shift panel.

We have six methods to determine the amount of shift in each feature. To begin the process, we focus on the four most important features: hotel, lead_time, parking_spaces, and country. These features were determined using the feature importance method after the model was trained. To streamline the analysis, the methods used are l-infinity for categorical variables and the Wasserstein method for continuous features.

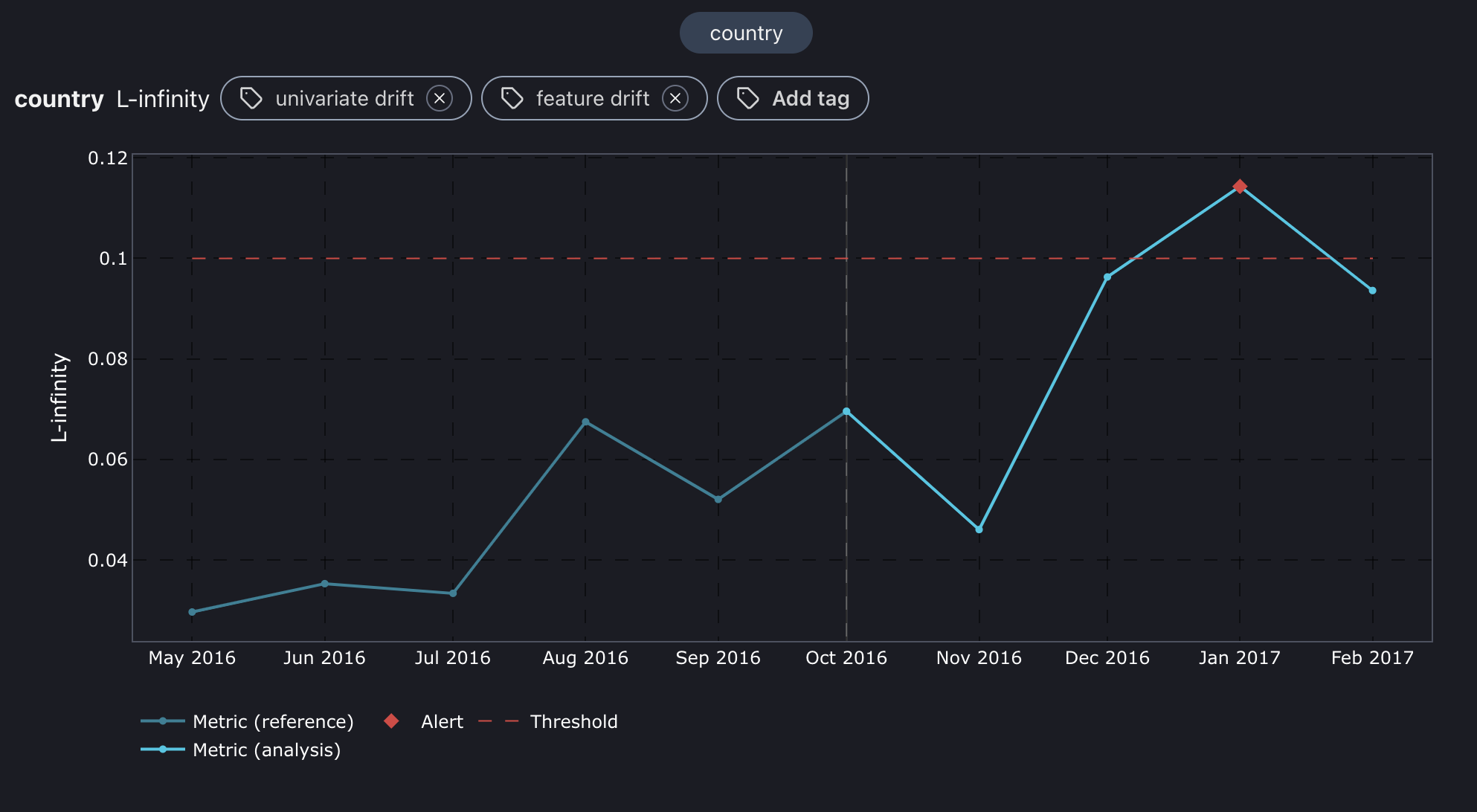

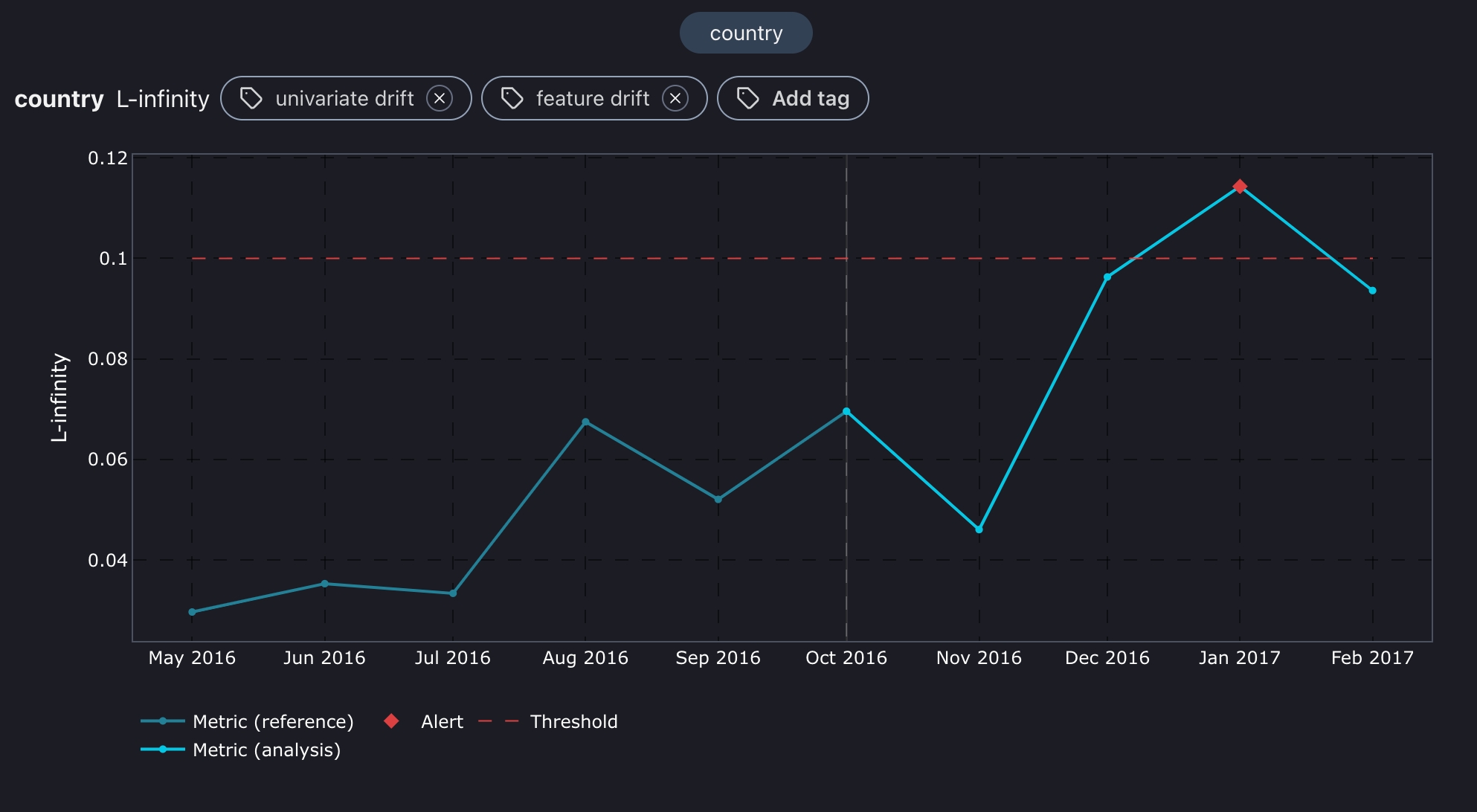

L-infinity plot for country feature.

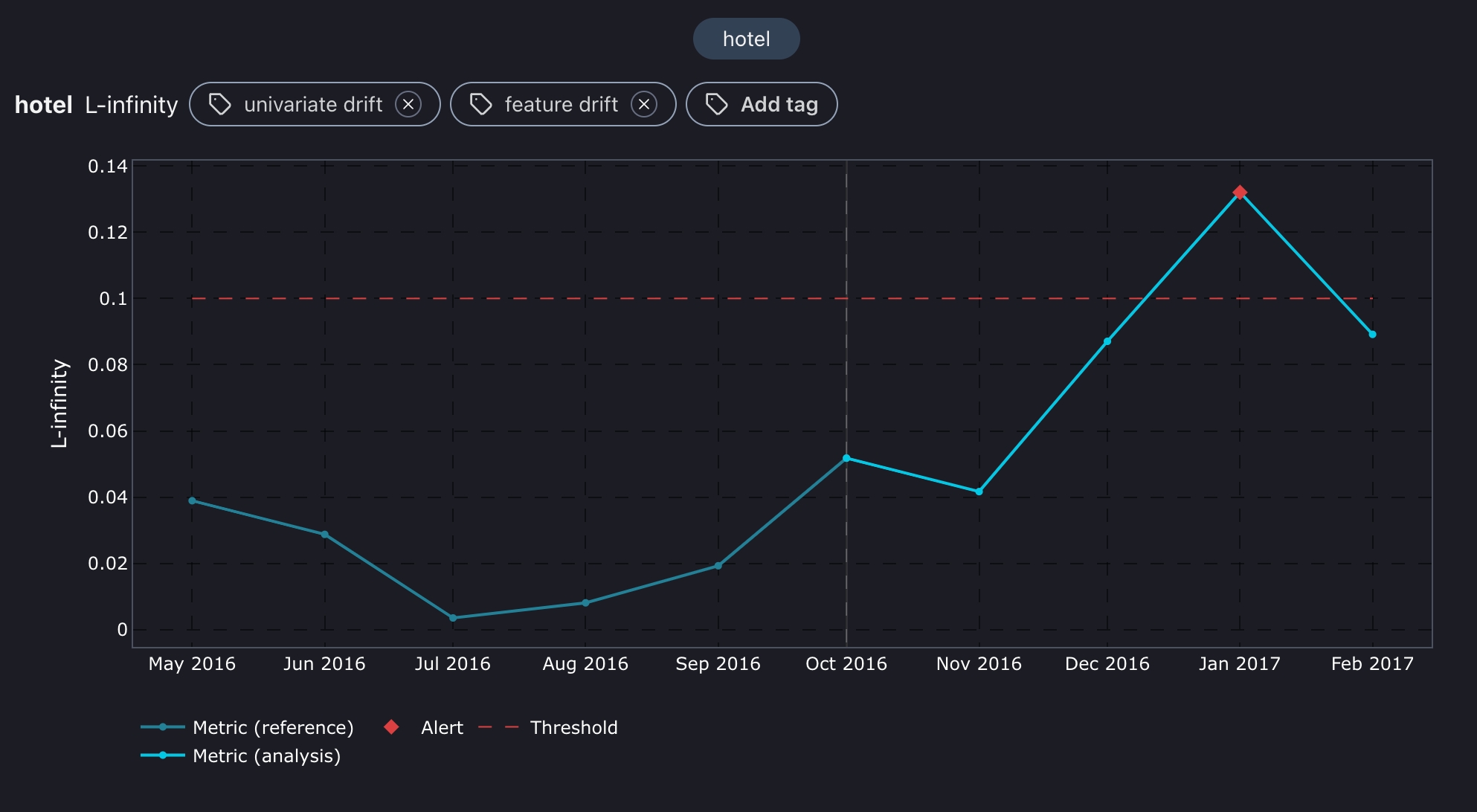

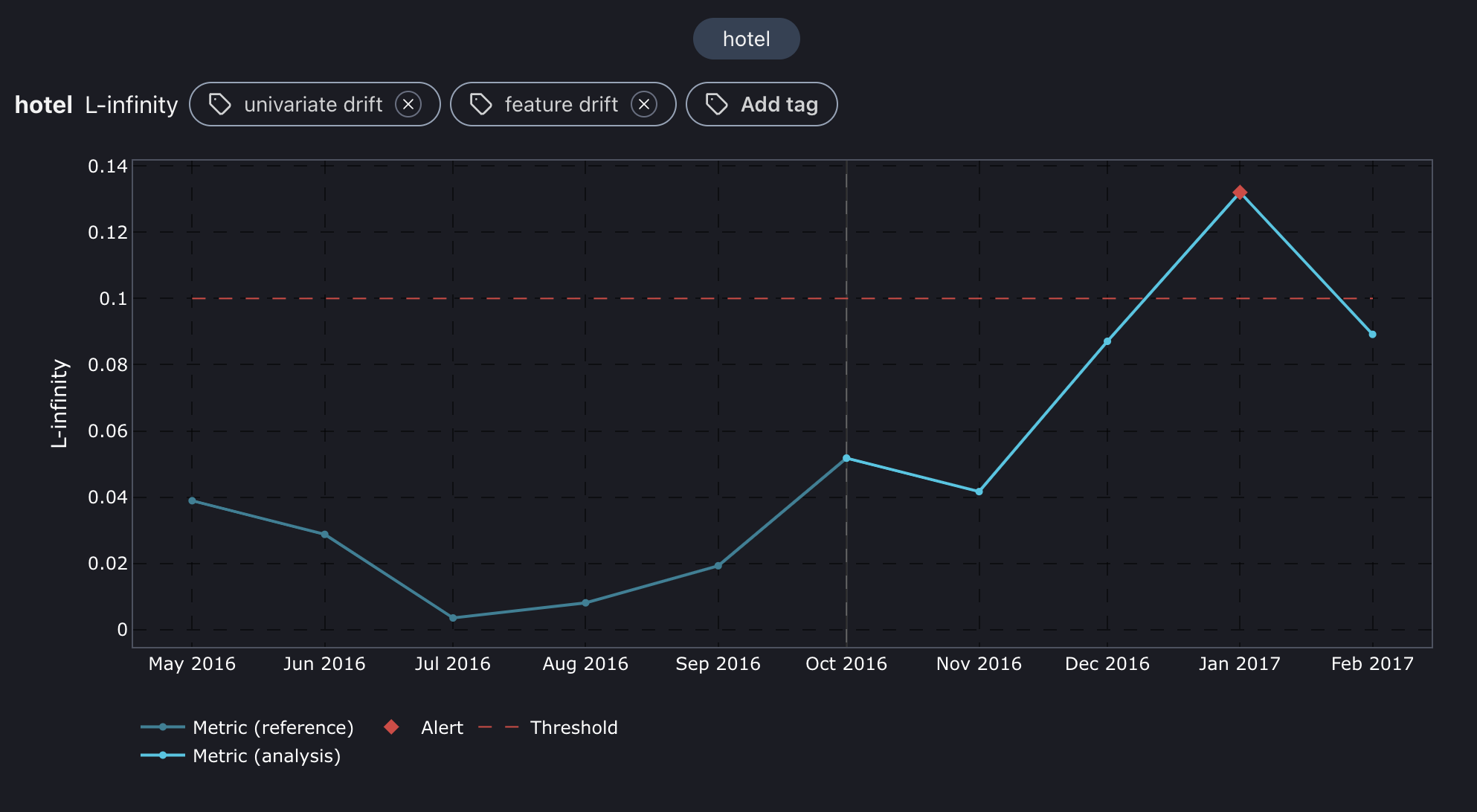

L-infinity plot for hotel feature.

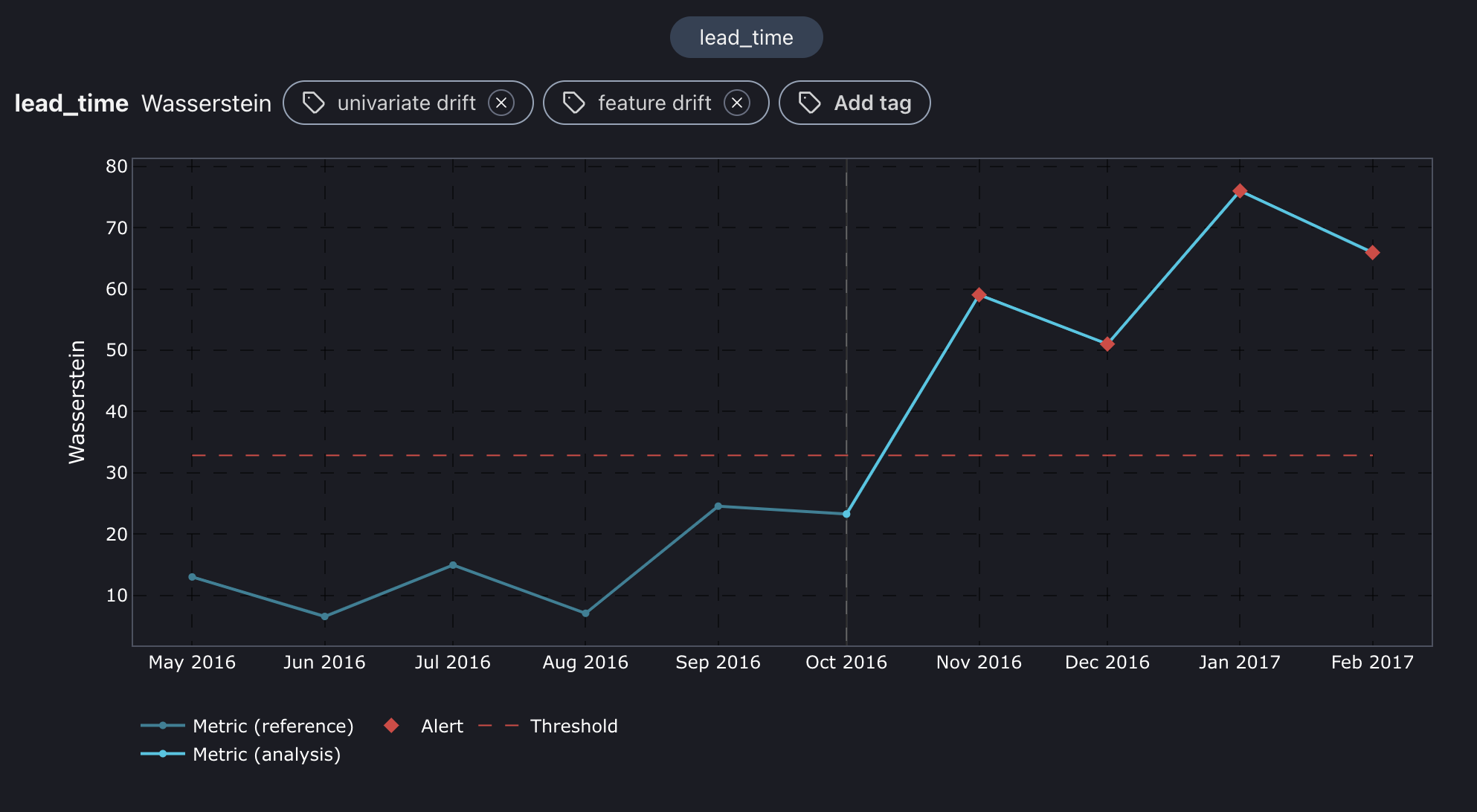

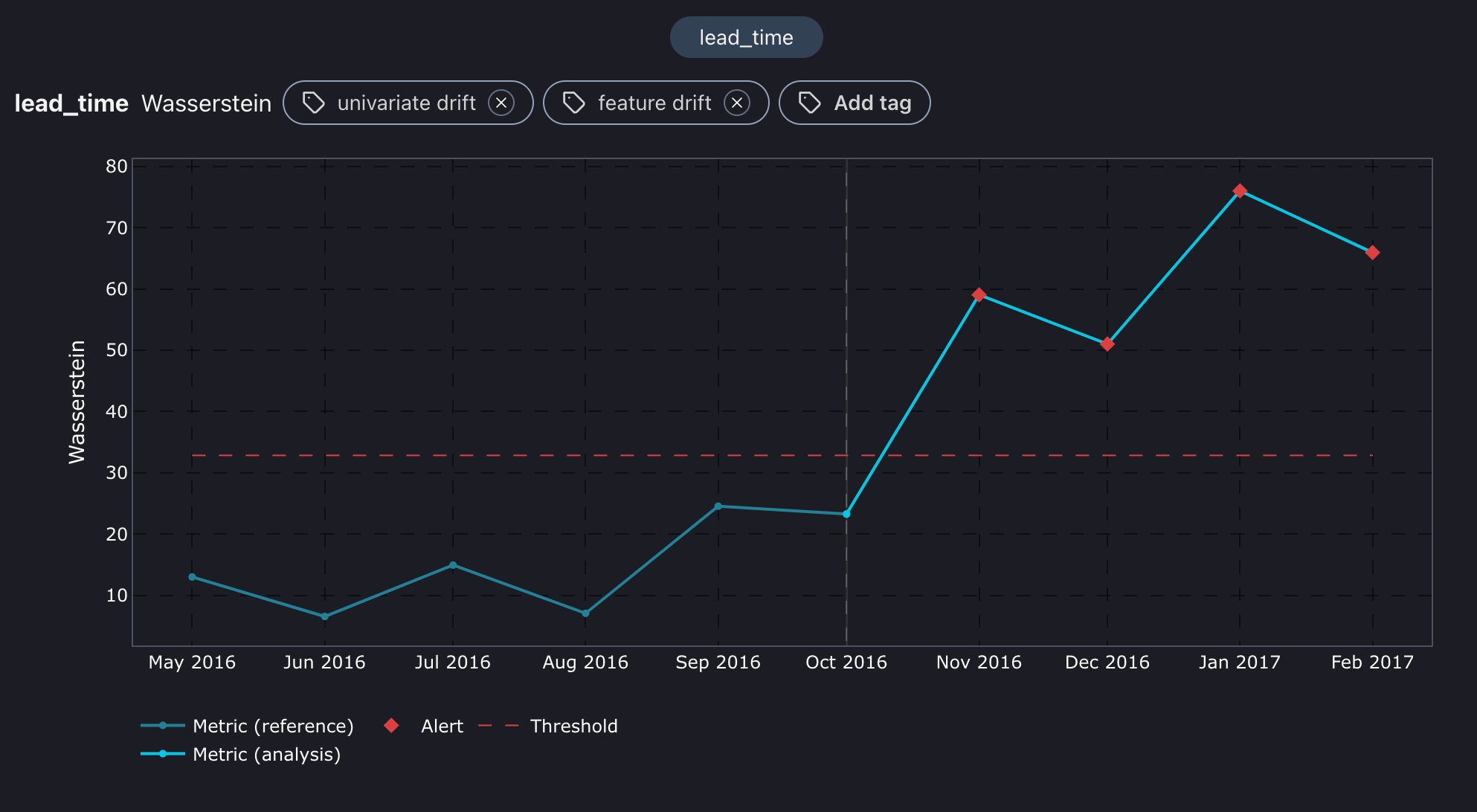

Wasserstein distance plot for lead_time feature.

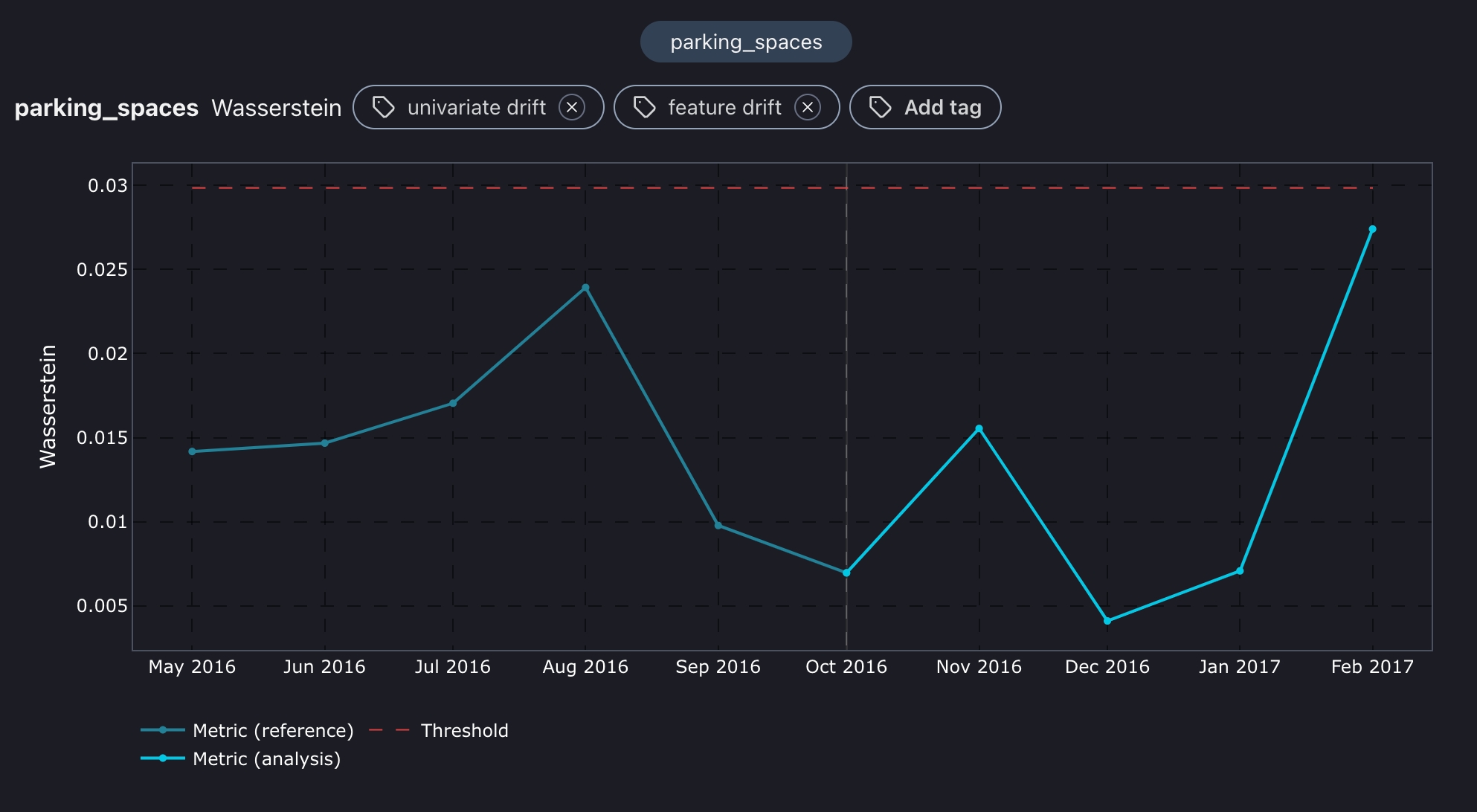

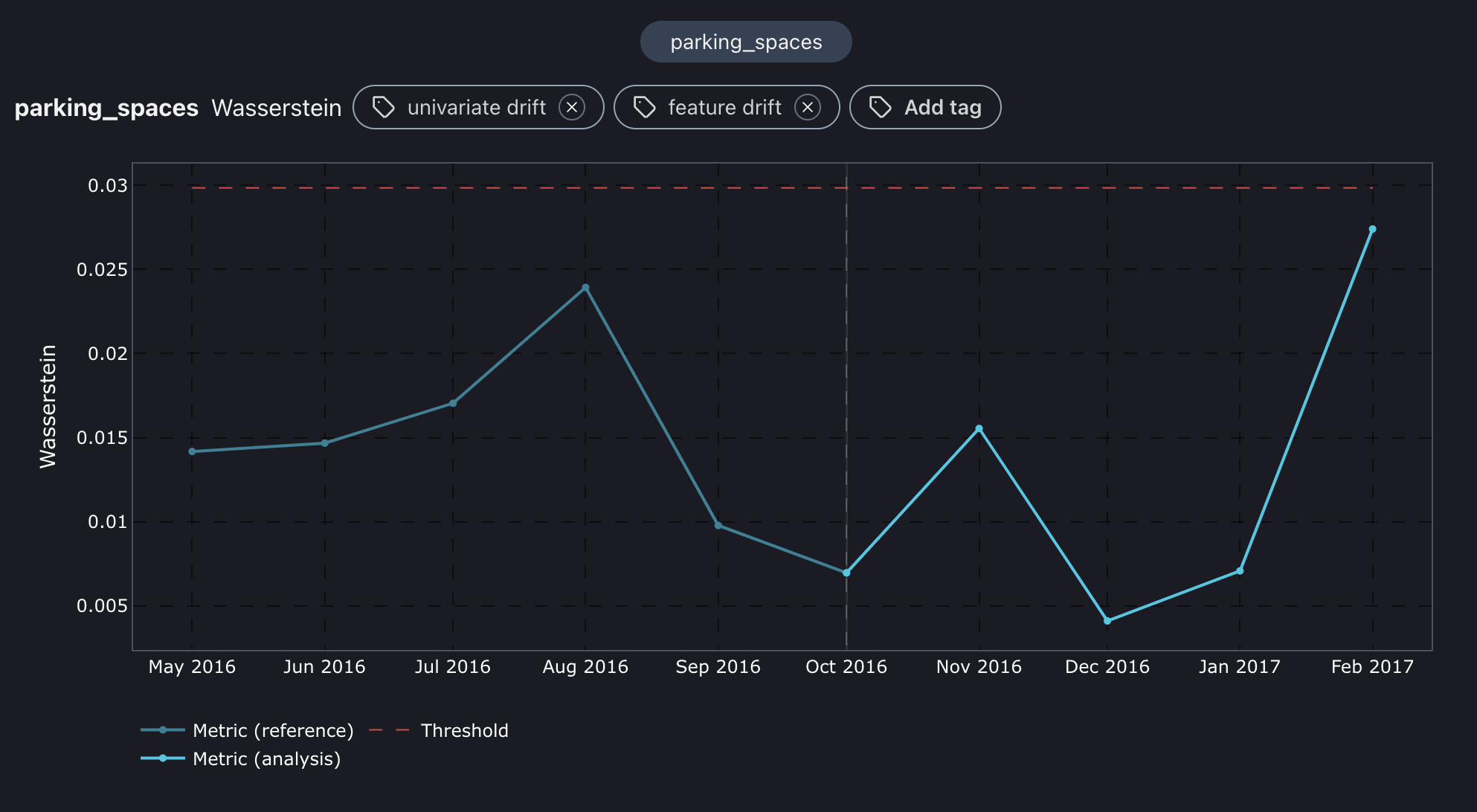

Wasserstein distance plot for parking_spaces feature.

For the features country and hotel, we noticed a shift in February that lines up with a drop in performance. Also, lead_time began to drift from December to March, which is exactly when we started seeing a gradual decline in accuracy. So, it looks like the root cause is linked to the drift in these three features. Now, let's reason more broadly about these shifts and relate them to the customer's behavior around that time.

Shift explanations

The root cause is associated with the drift in three key features: lead_time, hotel, and country. During November-March, it's common for the temperatures in northern European countries like Germany, Sweden, and the Netherlands to drop below 0 degrees. Additionally, many children had their winter break at that time, allowing them to travel with their parents. It's possible that tourists from northern Europe chose to visit Portugal during this period to escape the cold, which explains the shift in the country's feature distribution.

Furthermore, Portugal's sunny weather and temperatures around 20 degrees are mainly found in Algarve, the southern part of the country, as opposed to Lisbon, where temperatures are around 15 degrees. This accounts for the shift in the hotel distribution feature, as more people are booking hotels in the Algarve. Lastly, many of these winter getaways by foreigners are typically planned well in advance to secure travel tickets, make train reservations, request time off from work, and make other preparations. This advanced planning explains the significant shift in the lead time feature.

These changes ultimately resulted in a decrease in the performance of the model during the December to March period.

Comparing estimated and realized performance

We used performance estimation before since our analysis set didn't have targets. Now, we can add to validate the estimations and see if the concept shift has also affected the performance.

NannyML Cloud UI

1. Go to Model settings.

2. Click on the Add new rows button.

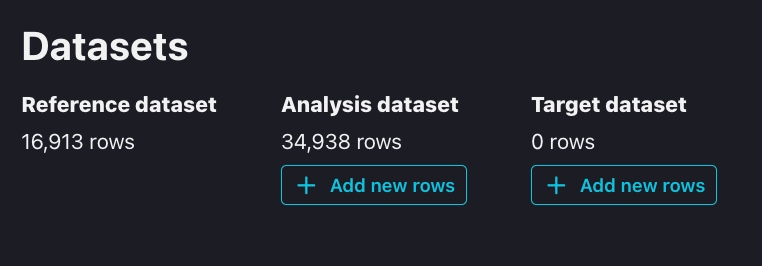

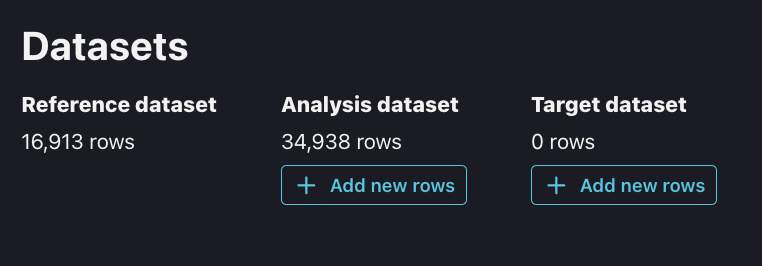

Datasets section in Model settings.

3. Upload the target dataset via the following link: - https://raw.githubusercontent.com/NannyML/sample_datasets/main/hotel_booking_dataset/hotel_booking_gt_march.csv

4. Run the analysis.

NannyML Cloud SDK

We first need to load our target data before we upload it to the NannyML Cloud. Once we've done that, just run NannyML Cloud again to view the realized performance and concept shift results.

target_data = pd.read_csv("https://raw.githubusercontent.com/NannyML/sample_datasets/main/hotel_booking_dataset/hotel_booking_gt_march.csv")
model_id = model["id"]
nml_sdk.Model.add_analysis_target_data(model_id, target_data)
nml_sdk.Run.trigger(model_id)

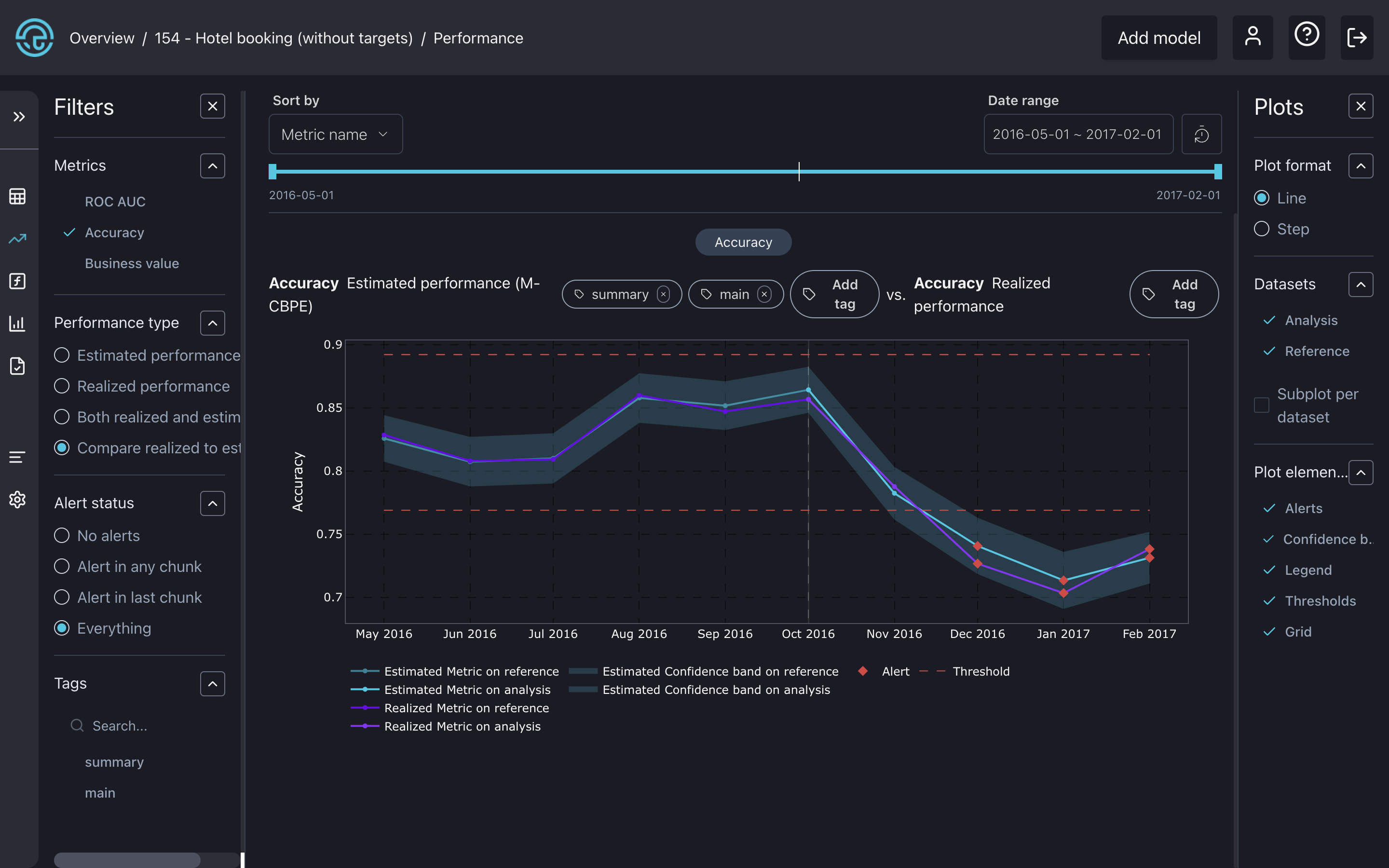

The Performance dashboard with a comparison plot between realized and estimated performance.

We can see that the realized performance also dropped in December, January, and February, confirming that the estimations were really accurate. Let's check if the concept shift is present in our data.

Concept shift detection

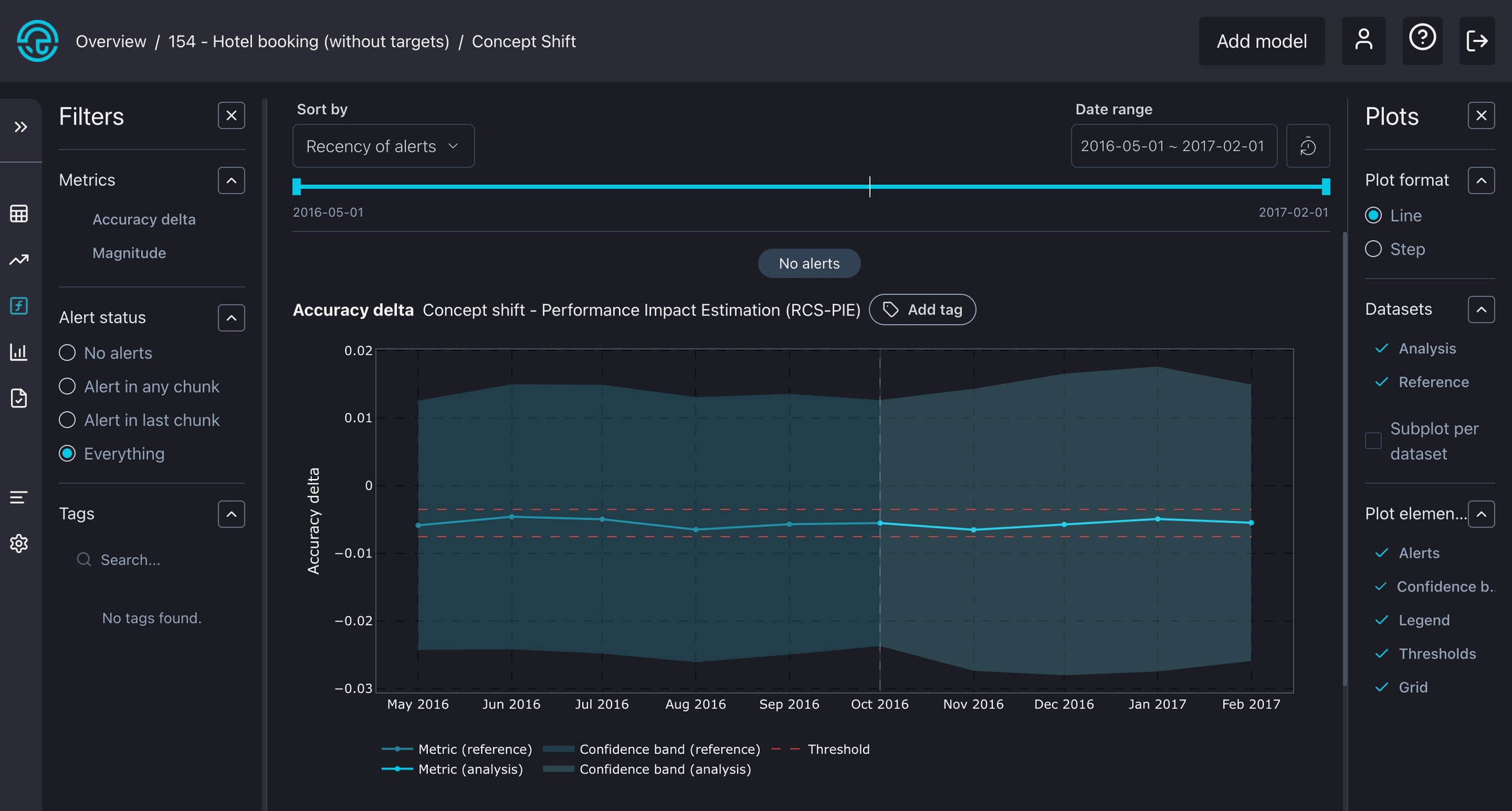

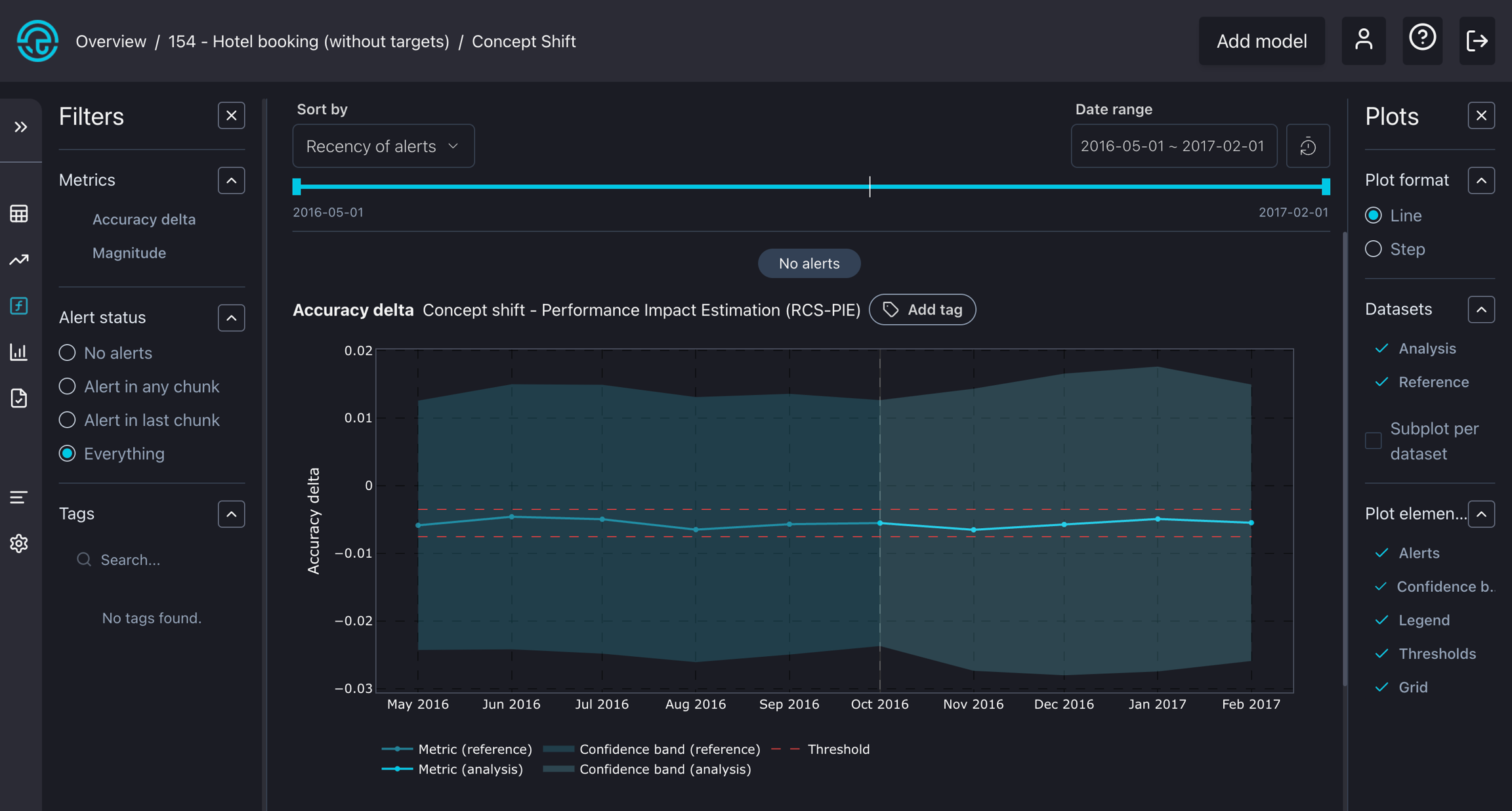

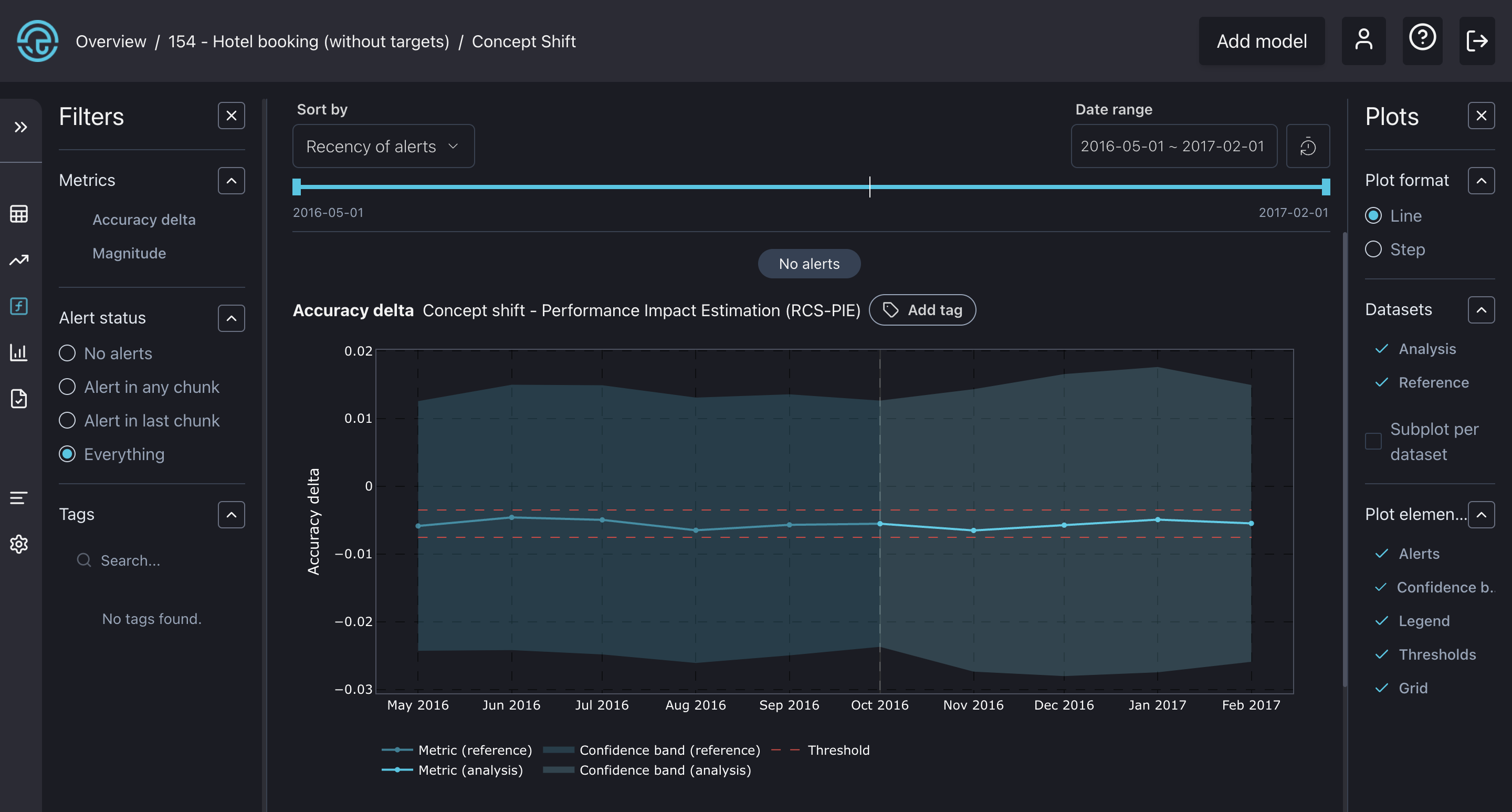

The Concept shift dashboard with a plot showing the impact of concept shift on accuracy.

The graph illustrates the impact of concept shift on performance, with the x-axis representing the change in accuracy due to concept shift. As we can see, it's less than -0.01 and remains within the specified thresholds, not triggering any alerts. This suggests that concept drift did not contribute to a drop in accuracy during that period, only previously analyzed covariate shift!
